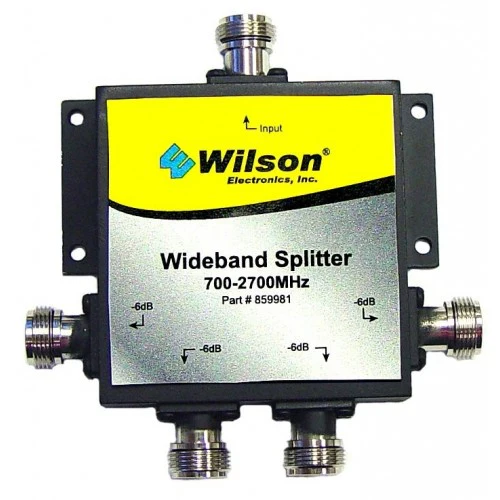

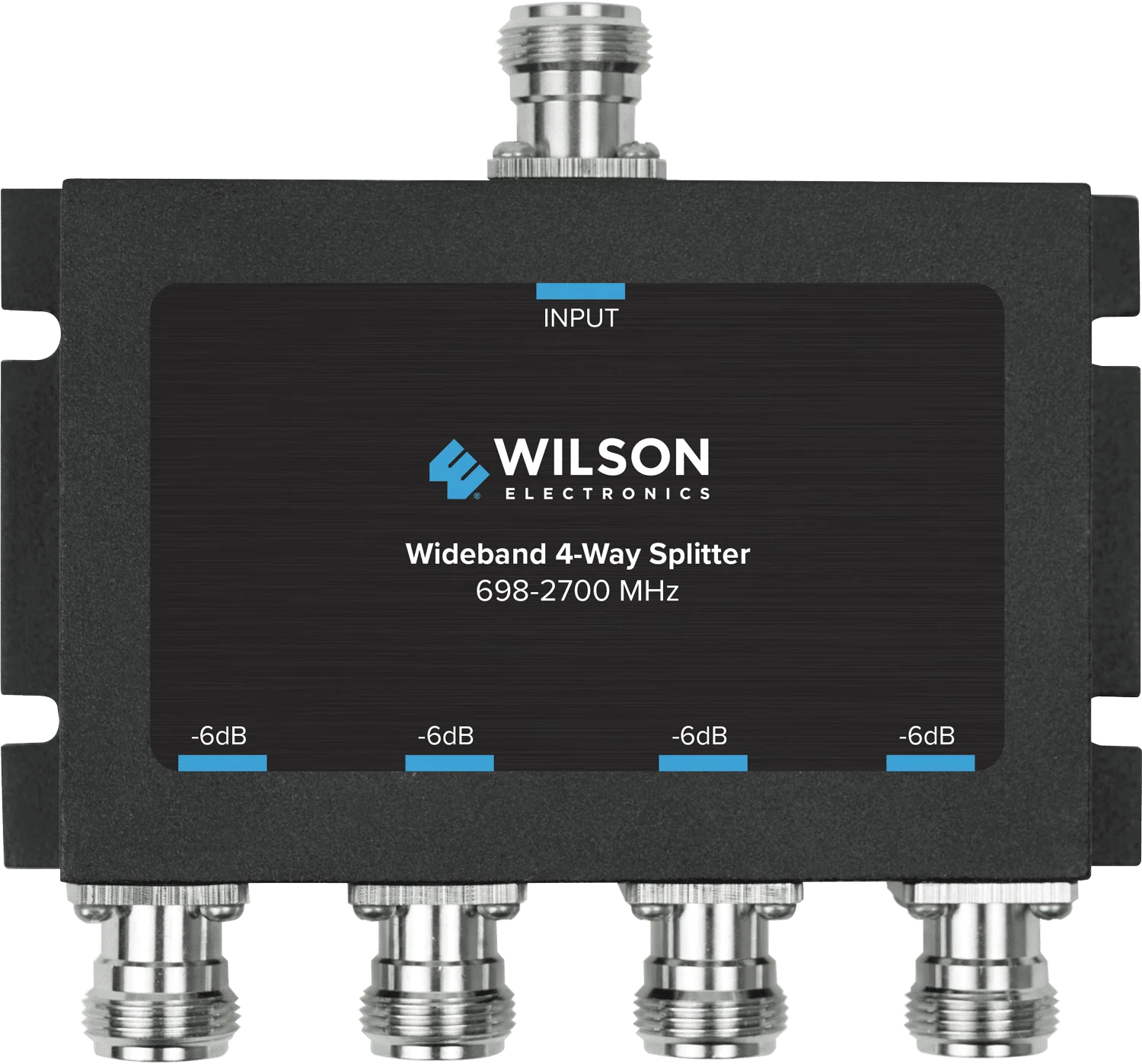

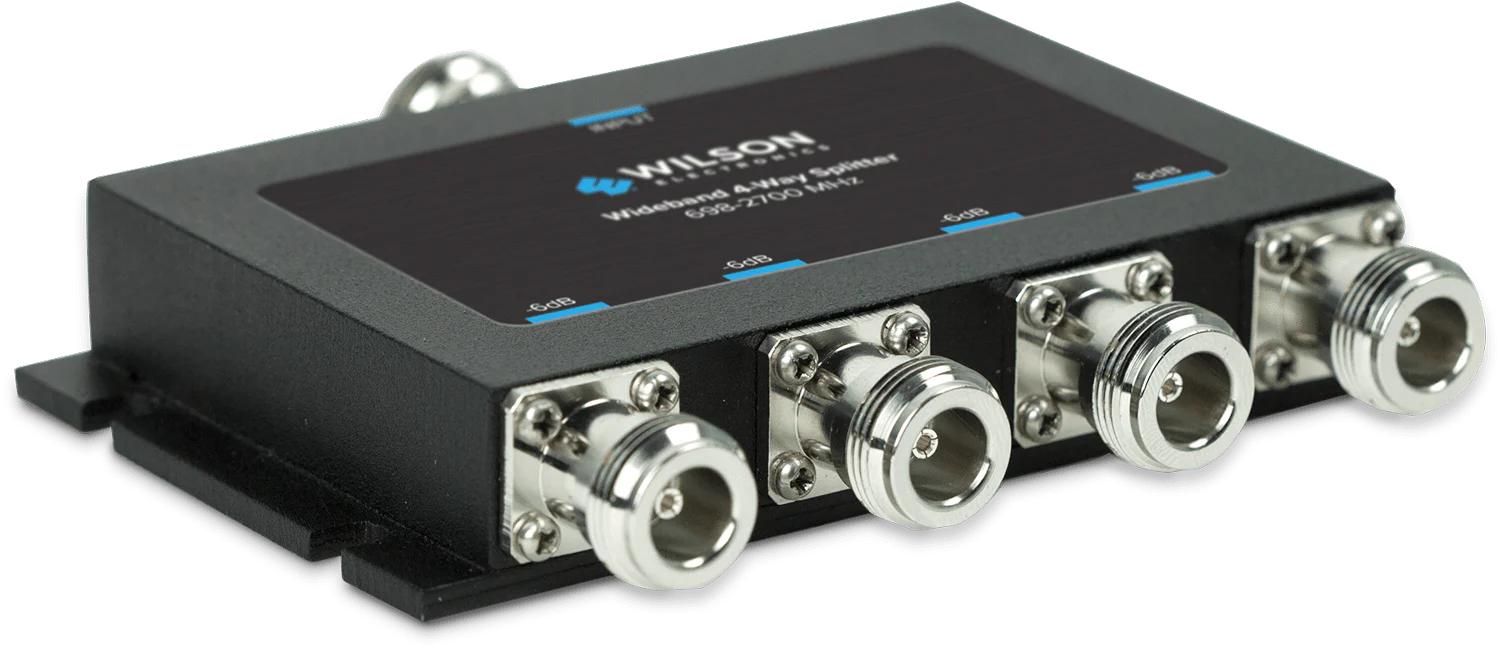

Wilson 859981 Four-Way Wide-Band Splitter with N-Female Connectors [Discontinued]
The Wilson 859981 Four-Way Wide-Band Splitter is a high-quality component designed for cellular mobile communication systems, facilitating the distribution of a single input signal into four outputs. Equipped with N-Female connectors, this splitter is compatible with a wide range of coaxial cables and devices. It operates across the frequency band of 698 to 2700 MHz, making it versatile for various cellular frequencies.
Key Features:
- Broad Frequency Range: Supports frequencies from 698 to 2700 MHz, suitable for most cellular networks.
- Optimized for Cellular Communication: Engineered to distribute signals in cellular mobile communication setups with minimal loss.
- Low Insertion Loss and VSWR: Features an insertion loss of -6 dB and VSWR of ≥1.4, ensuring efficient signal transmission.
- High Isolation: Offers high isolation (≥20 dB) with low ripple, reducing interference between connected devices.
- Microstrip Structure: Built with a microstrip structure for enhanced performance and durability.
- Power Handling: Can manage up to 50 watts of power, accommodating various amplification needs.
Specifications:
- Connector Type: N-Female, for wide compatibility with RF equipment.
- Dimensions: Measures 4.5 x 4.5 x 0.98 inches (LxWxD), providing a compact solution for signal splitting.
- Weight: Weighs 11.64 ounces, balancing durability with ease of installation.
- Operating Temperature: Rated for use between -40 to 140°F, ensuring reliability under various environmental conditions.
The Wilson 859981 Splitter is an ideal choice for expanding the reach of a single signal source to multiple locations, ensuring consistent and reliable cellular communication. Whether for commercial, industrial, or residential applications, this splitter delivers exceptional performance and reliability.
Original: $119.99
-65%$119.99
$42.00
Description
The Wilson 859981 Four-Way Wide-Band Splitter is a high-quality component designed for cellular mobile communication systems, facilitating the distribution of a single input signal into four outputs. Equipped with N-Female connectors, this splitter is compatible with a wide range of coaxial cables and devices. It operates across the frequency band of 698 to 2700 MHz, making it versatile for various cellular frequencies.
Key Features:
- Broad Frequency Range: Supports frequencies from 698 to 2700 MHz, suitable for most cellular networks.
- Optimized for Cellular Communication: Engineered to distribute signals in cellular mobile communication setups with minimal loss.
- Low Insertion Loss and VSWR: Features an insertion loss of -6 dB and VSWR of ≥1.4, ensuring efficient signal transmission.
- High Isolation: Offers high isolation (≥20 dB) with low ripple, reducing interference between connected devices.
- Microstrip Structure: Built with a microstrip structure for enhanced performance and durability.
- Power Handling: Can manage up to 50 watts of power, accommodating various amplification needs.
Specifications:
- Connector Type: N-Female, for wide compatibility with RF equipment.
- Dimensions: Measures 4.5 x 4.5 x 0.98 inches (LxWxD), providing a compact solution for signal splitting.
- Weight: Weighs 11.64 ounces, balancing durability with ease of installation.
- Operating Temperature: Rated for use between -40 to 140°F, ensuring reliability under various environmental conditions.
The Wilson 859981 Splitter is an ideal choice for expanding the reach of a single signal source to multiple locations, ensuring consistent and reliable cellular communication. Whether for commercial, industrial, or residential applications, this splitter delivers exceptional performance and reliability.
